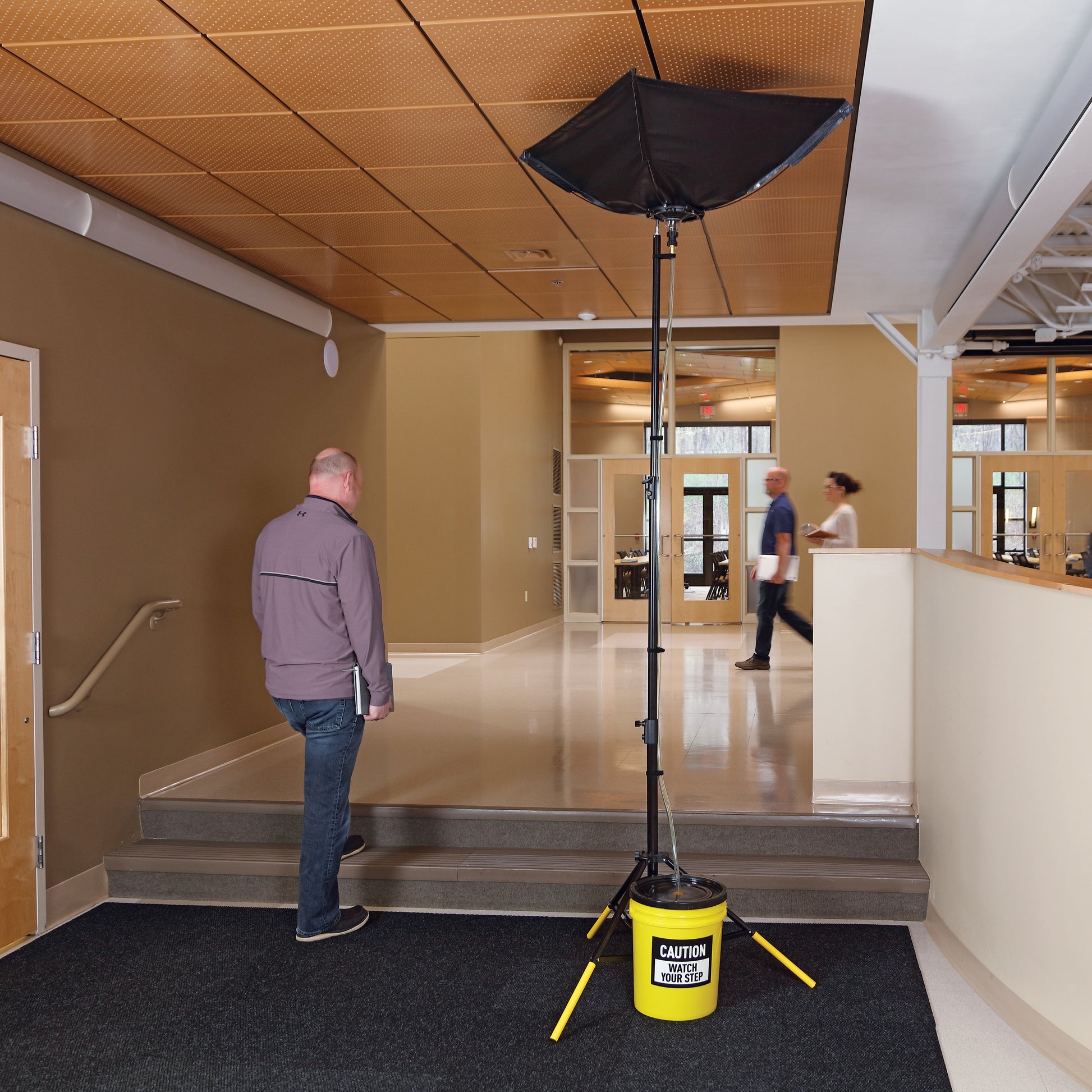

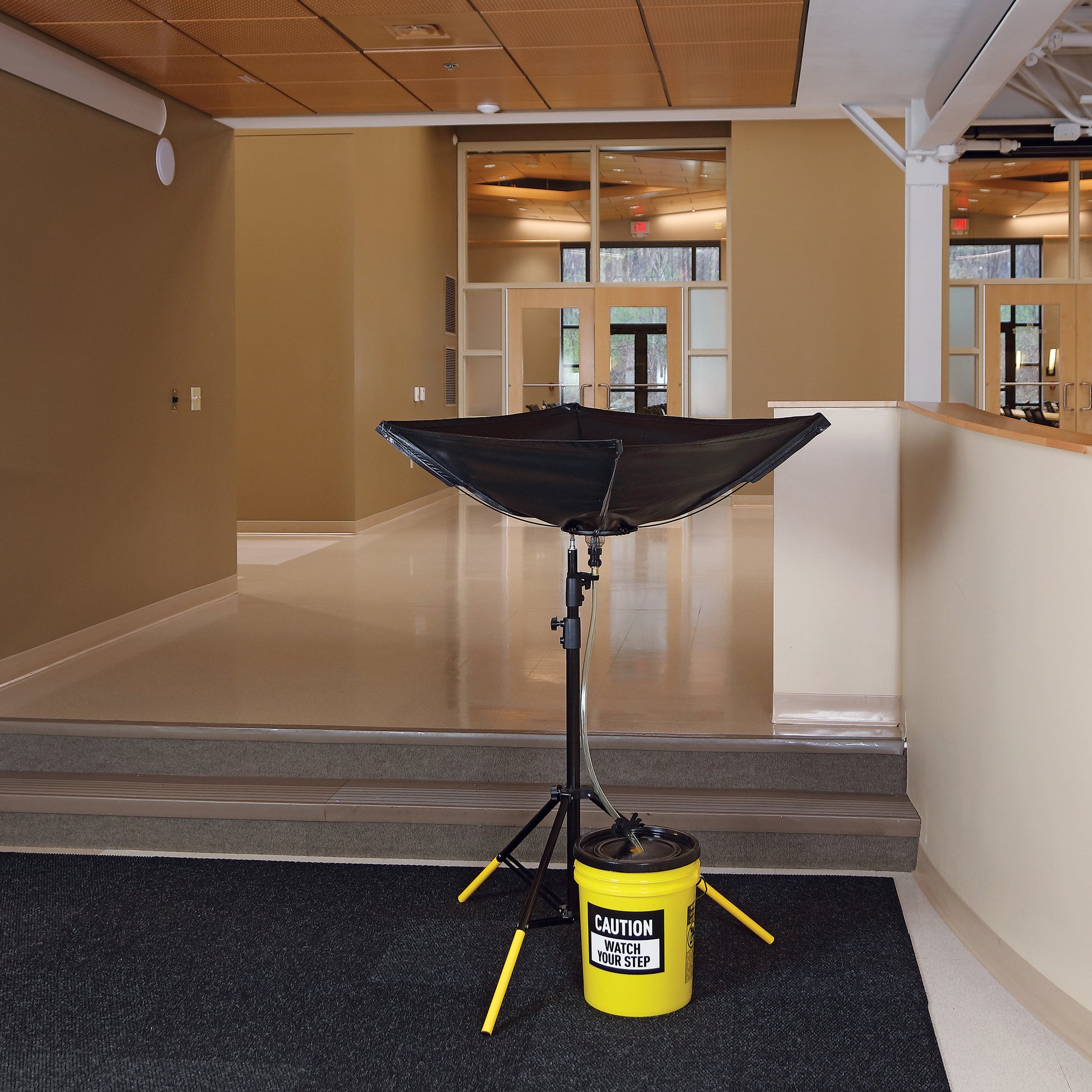

Addressing roof leaks in areas with high ceilings - such as airports, hotel lobbies, warehouses, or hospitals - presents unique challenges, often risking worker safety with ladders or presenting an unsightly solution with buckets. The TLS820 kit solves this by providing a professional, one-person installation solution.The core of the system is the heavy-duty vinyl-coated PVC diverter tarp, which resists punctures, UV, and mildew, ensuring repeated, long-term use.

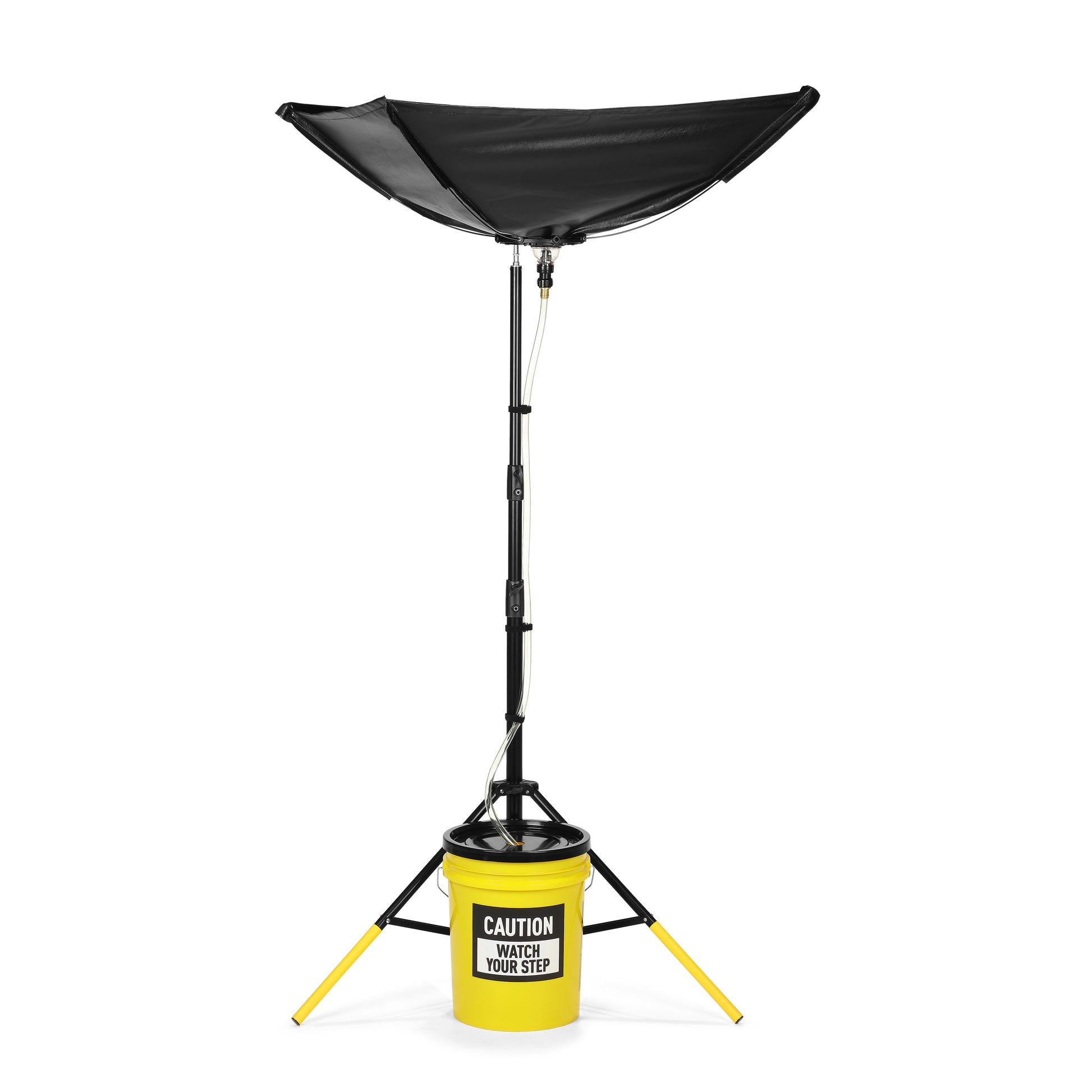

This tarp is securely mounted on a telescoping steel pole that adjusts easily from 127cm up to 274cm high, allowing a single person to position the diverter without the use of a ladder. The base features highly visible yellow legs for safety and an anti-tip design for stability in heavy foot-traffic areas.Water is collected and routed through a large, anti-clog drain opening with a debris cage before being channelled into the included 19 Litre collection bucket.
The bucket has a lidded design that prevents passers-by from inadvertently dropping items into the collected liquid. For ceilings above the pole's reach (up to 4.5 metres), the included polyester mat pad can be positioned beneath the system to catch any splash-out, maintaining a professional and dry appearance in customer-facing areas.
Model: TLS820
Diverter Tarp Dimensions (W × L): 69 cm × 89 cm
Installation Method: Telescoping Steel Pole
Pole Adjustable Height: 127 cm (collapsed) up to 274 cm (extended)
Maximum Effective Ceiling Height: Up to 4.5 metres (with splash catch)
Flow Rate: 12.6 L/min
Collection Capacity: 19-Litre Lidded Plastic Bucket (Included)
Drainage Hose Length: 305 cm Clear PVC Hose (Included)
Hose Connector: 0.75"

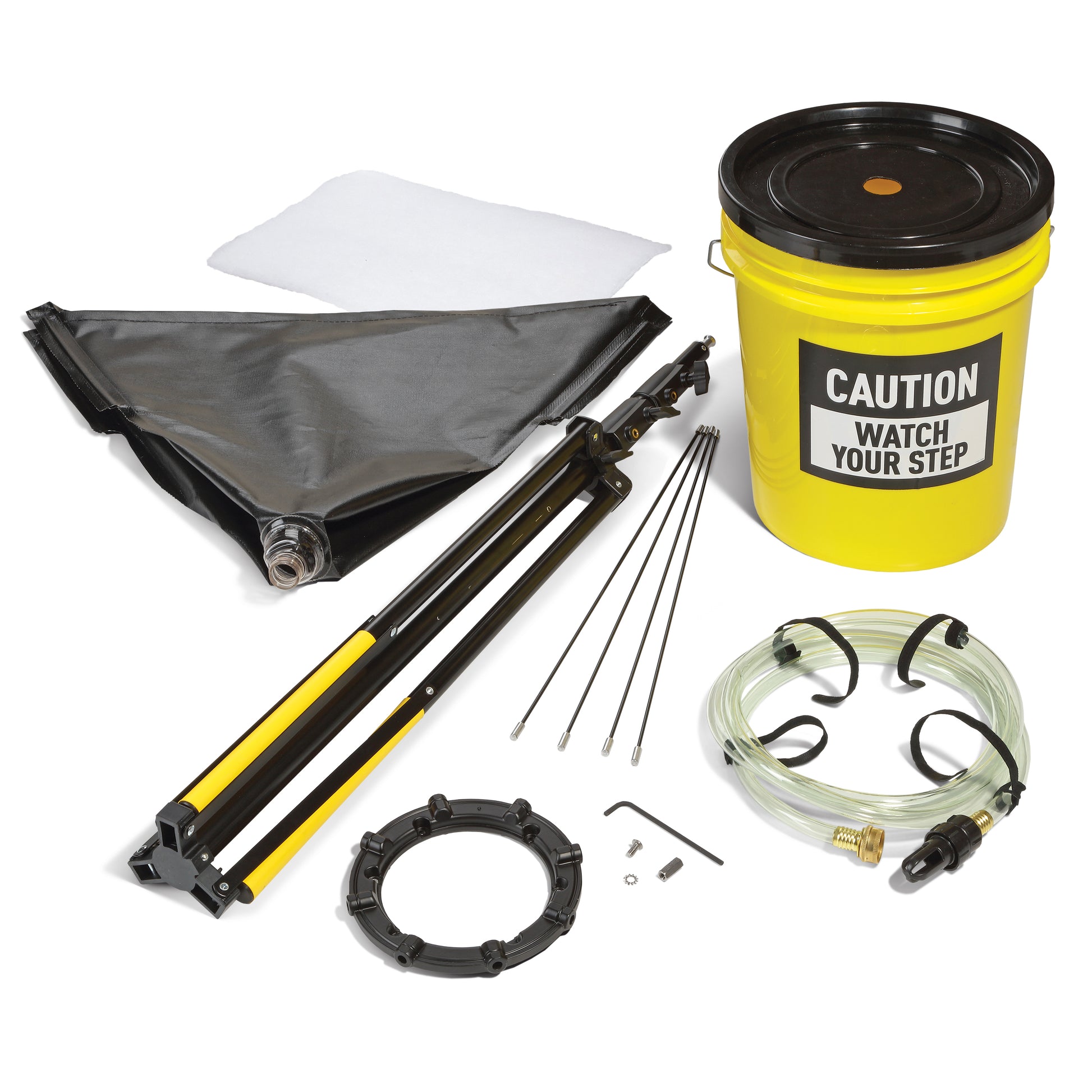

Composition: Diverter – PVC; Pole – Steel; Bucket – Plastic; Splash Pad – Polyester
Weight (Kit): 5.5 kg
Maximum Working Temperature: Not to exceed 77 °C (170 °F)
Colour: Yellow
Use With: Overhead Pipes / Condensation
1. Can one person set up this High-Reach Diverter without a ladder?

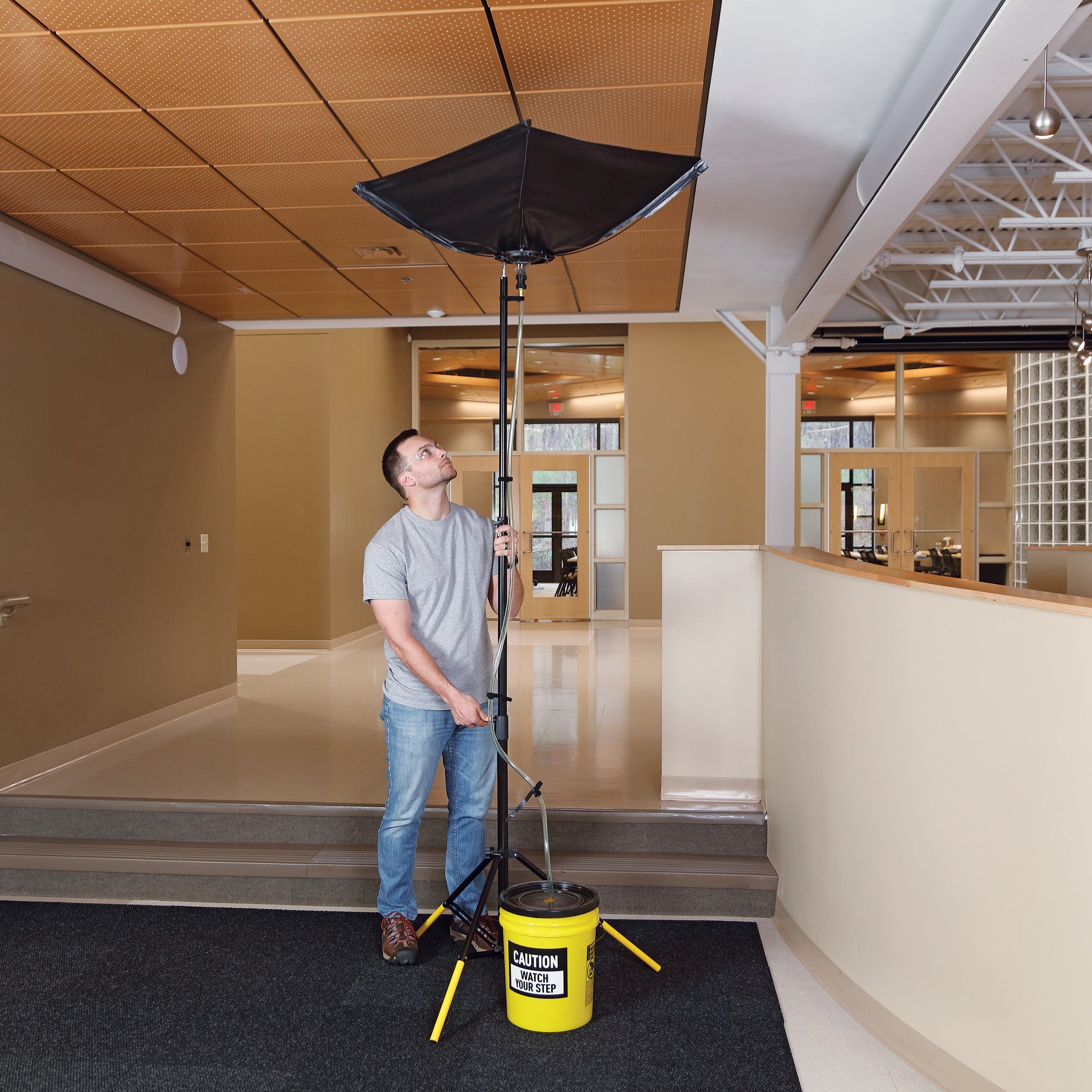

Yes. The key feature of this kit is the telescoping pole, which allows a single person to adjust the height up to 274 cm to position the diverter and secure it below the leak source safely from the floor, eliminating the immediate need for a ladder or lift
2. What is the maximum height this kit can effectively manage leaks from?
The telescoping pole extends up to 274 cm. With the large tarp area and the included splash mat pad, the system is designed to effectively capture drips and contain splashes from ceilings as high as 4.5 metres
3. How is the collected liquid safely removed from the 19 Litre bucket?
The collection bucket features a smart, lidded design. The liquid can be emptied through a specific drainage-hose cut-out without removing the lid, which enhances safety and prevents items from being mistakenly dropped into the collected water
4. Is the diverter tarp durable enough for repeated use?
Absolutely. The diverter tarp is constructed from heavy-duty, vinyl-coated PVC that resists punctures, UV damage, and mildew. It is specifically engineered to be a reusable, long-term emergency response tool.
5. Why are there yellow legs and a Caution message included in the design?
These features are critical for safety in high-traffic environments. The high-visibility yellow legs and the Caution message on the base clearly warn pedestrians of the temporary obstruction and the presence of a leak management system, significantly reducing the risk of trips or other accidents.
