Preventing damage from overhead pipe leaks, burst lines, or accumulating condensation is critical for maintaining a safe and operational facility. The PIG® Pipe Leak Diverter provides a quick and highly reliable temporary control measure.
The funnel-shaped diverter is made from tough, nonpermeable 18oz PVC/Polyester material, which is vinyl-coated for strength, durability, and a long service life, resisting punctures, UV degradation, and mildew. Each unit includes four robust rubber hanging straps that easily attach to the built-in brass grommets, allowing for a secure and stable installation directly below the leak source.
The contoured base directs all captured liquid to a central outlet connection. This connection is a standard 0.75"" GHT (Garden Hose Thread) female fitting, allowing for easy attachment of any standard 1/2"" ID drainage hose (available separately). With a high flow rate of 12.6 litres per minute (when using a 1/2"" ID hose), this system is capable of managing substantial leaks until permanent repairs can be made.
The three available sizes (30cm, 46cm, and 61cm diameter) ensure the perfect fit for the specific size and flow of the overhead leak. Furthermore, various colour options are available for different application needs: Yellow for high visibility and hazard warning; Grey to blend discreetly with most facility ceilings; and Clear for immediate visual monitoring of the liquid flow and condition of the interior.

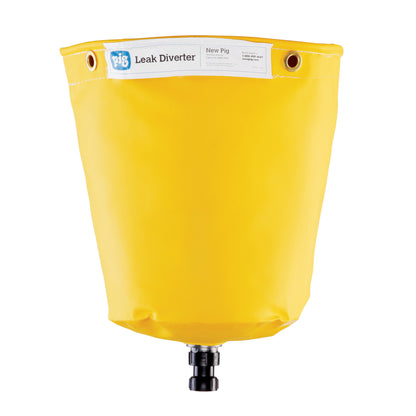

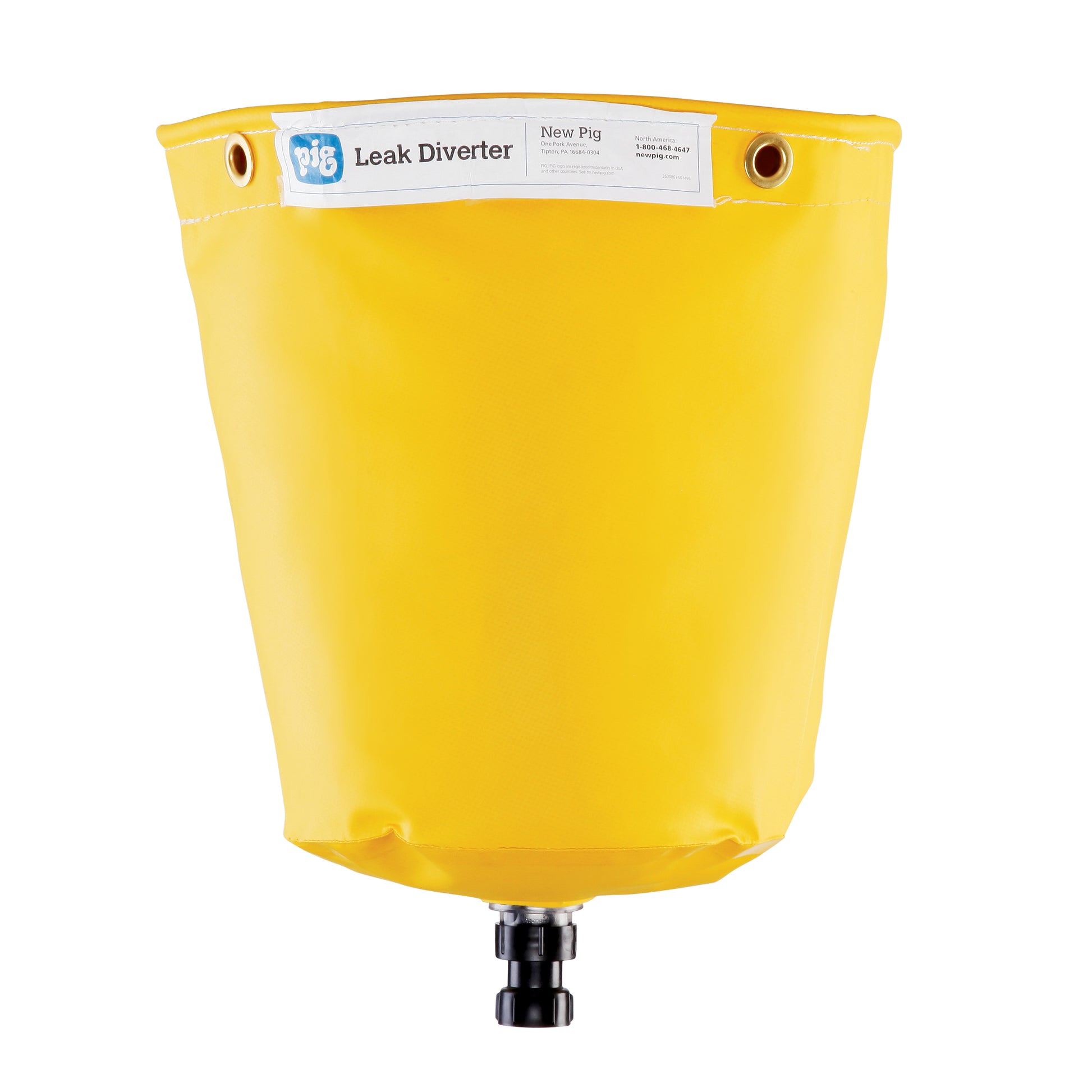

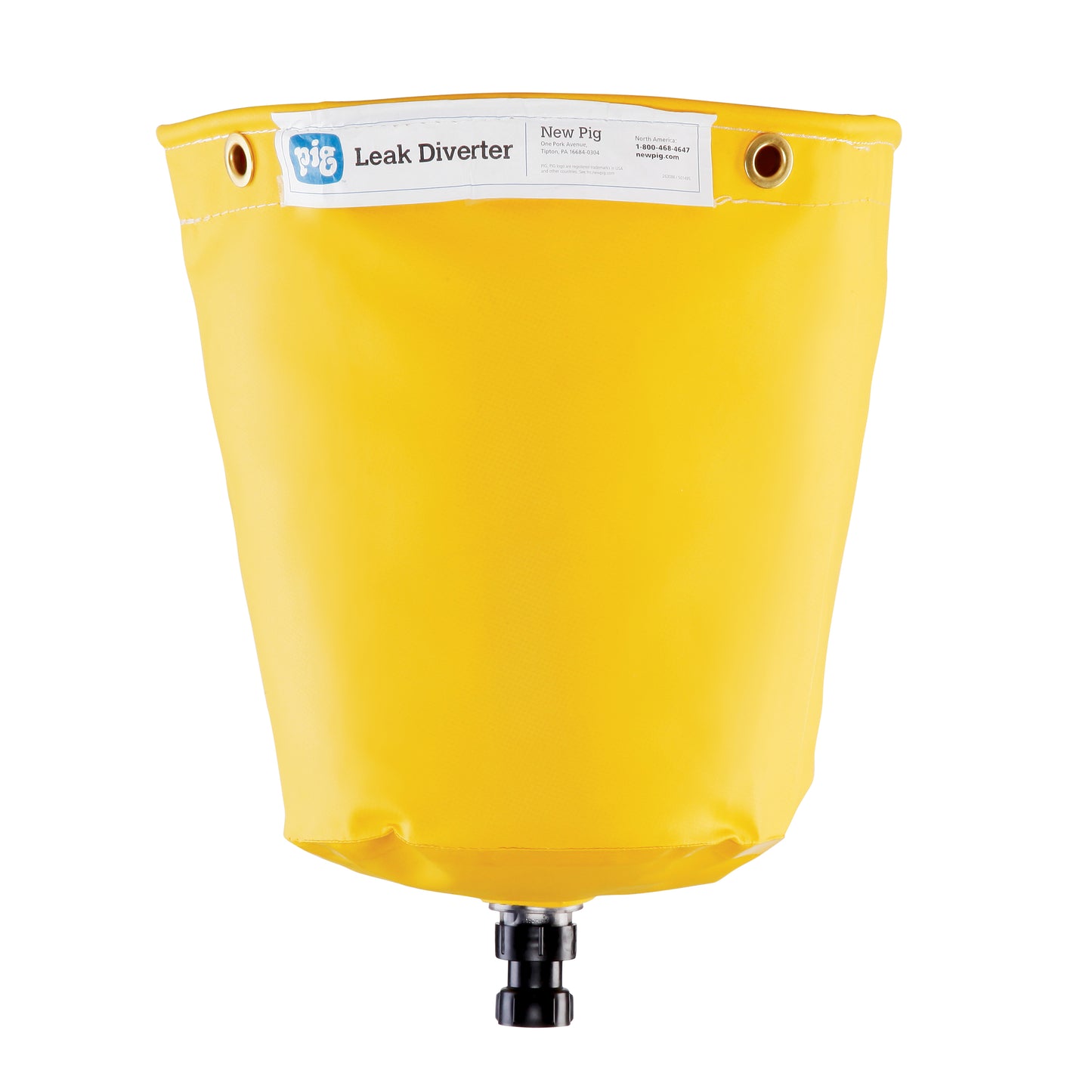

Model: TLS200
Diverter Dimensions (Dia. × H): 30 cm × 30 cm
Style / Shape: Cone / Circle
Composition: 18 oz PVC / Polyester
Flow Rate: 12.6 L/min (with ½" ID hose)
Hose Connector: 0.75" GHT Female
Hanging Straps: 4 Rubber Straps (Included)
Drainage Hose: Sold Separately
Colour: Yellow
Use With: Overhead Pipes / Condensation
Model: TLS248
Diverter Dimensions (Dia. × H): 46 cm × 46 cm
Style / Shape: Cone / Circle
Composition: 18 oz PVC / Polyester
Flow Rate: 12.6 L/min (with ½" ID hose)
Hose Connector: 0.75" GHT Female
Hanging Straps: 4 Rubber Straps (Included)
Drainage Hose: Sold Separately
Colour: Yellow
Use With: Overhead Pipes / Condensation

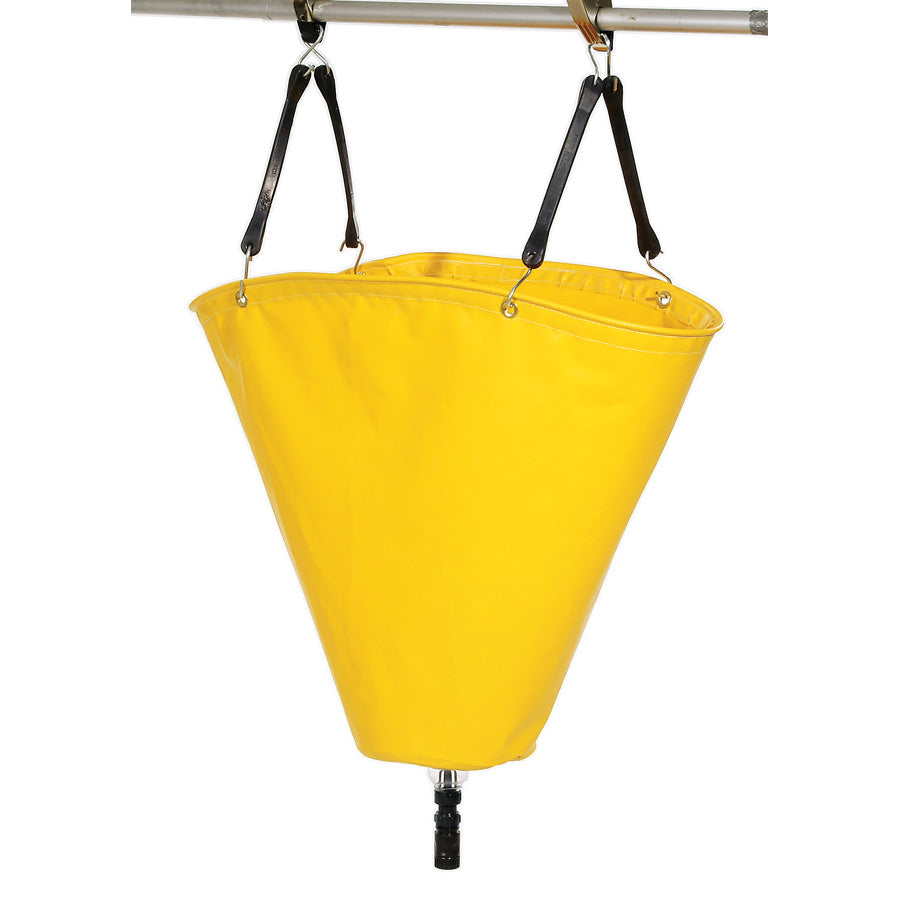

Model: TLS691
Diverter Dimensions (Dia. × H): 61 cm × 61 cm
Style / Shape: Cone / Circle
Composition: 18 oz PVC / Polyester
Flow Rate: 12.6 L/min (or 3.33 gal/min)
Hose Connector: 0.75" GHT Female
Hanging Straps: 4 Rubber Straps (Included)
Drainage Hose: Sold Separately
Colour: Yellow
Use With: Overhead Pipes / Condensation
1. How do I know which size diverter (TLS200, TLS248, or TLS691) is correct for my leak?
The size you choose should correspond to the overall surface area of the leak or the spread of the drips. The 30 cm (TLS200) is suitable for small, isolated leaks; the 46 cm (TLS248) is for mid-sized drips or condensation; and the 61 cm (TLS691) provides the largest coverage area for broader or more unpredictable leaks.
2. Does the drain hose come included with the pipe diverter?
No, the drainage hose is sold separately.8 This allows users to purchase the specific length and type of hose required for their facility, as the connection is a standard 0.75" GHT (Garden Hose Thread)
3. What is the benefit of the different colour options?
The colour options offer functional benefits:Yellow: Provides high visibility, acting as a clear safety warning in busy areas.9Grey: Offers a more discreet option, blending into typical industrial or warehouse ceilings.10Clear: Allows maintenance personnel to visually monitor the leak flow and the fluid captured inside the cone without needing to get too close.
4. Can this diverter be used for chemicals or corrosive liquids?
This diverter is made from durable PVC/Polyester, which offers good resistance to many industrial liquids.
5. How is the diverter mounted onto the leaking pipe?

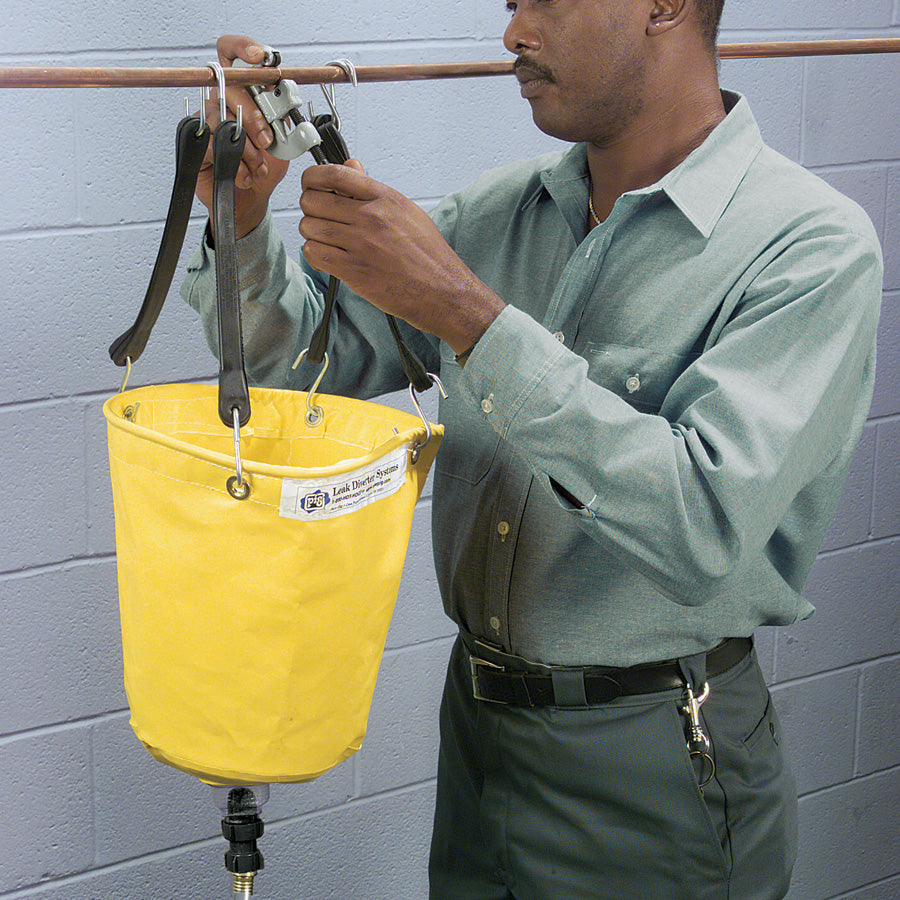

Each diverter features four integrated brass grommets around the rim.13 The included rubber hanging straps attach to these grommets, allowing you to quickly loop the diverter and secure it directly onto the overhead pipe, providing instant positioning beneath the leak source.
