PIG Safety Message Roof Leak Diverter

PIG Safety Message Roof Leak Diverter

Regular price Β£85.50
Regular price Sale price Β£85.50
Sale Sold out
Shipping calculated at checkout.
Quantity

The PIG Safety Message Roof Leak Diverter provides an immediate, highly visible solution for the critical management of damaging ceiling leaks. This robust system is expertly engineered to effectively capture and channel water, thereby preventing inventory damage, equipment failure, and the significant risk of slip hazards on the floor.

View full details

This model is an essential operational tool designed for both emergency leak containment and planned, long-term preventative maintenance across all industrial and commercial facilities. We've ensured that this solution is manufactured from a high-grade, nonpermeable 13-ounce PVC/Polyester composite which is durably vinyl-coated. This superior composition guarantees outstanding resilience and longevity, resisting typical industrial wear, punctures, UV degradation, and mildew formation.

Critically, the unit features a sophisticated pinched-corner design which facilitates optimal drainage. This design efficiently directs all collected liquid toward the central evacuation point, ensuring containment is swift and effective. The diverter incorporates a standard ΒΎ-inch hose connection for simple and secure attachment of a suitable drainage hose (available separately), allowing captured water to be safely diverted to a floor drain or designated reservoir. With a substantial, verified flow rate of 12.6 litres per minute, this diverter ensures rapid removal of high-volume water ingress, affording your business crucial protection against costly operational downtime and extensive water damage

Model Number: TLS555
Style: Square Tarp
Dimensions (W x L): 152 cm x 152 cm (Nominal)
Composition: 13 oz PVC/Polyester (Vinyl Coated)
Flow Rate: 12.6 litres per minute (with 1/2" ID hose)
Hose Connection: Standard 0.75"
Corner Design: 7.5 cm Pinched Corner with Grommet
Grommets/D-Rings: 8 Total
Resistance: Punctures, UV, and Mildew
Installation Method: Hanging Straps (Sold Separately)
Maximum Working Temp: Not to exceed 77Β°C (170Β°F)

1. What is the purpose of the safety message integrated into the fabric?

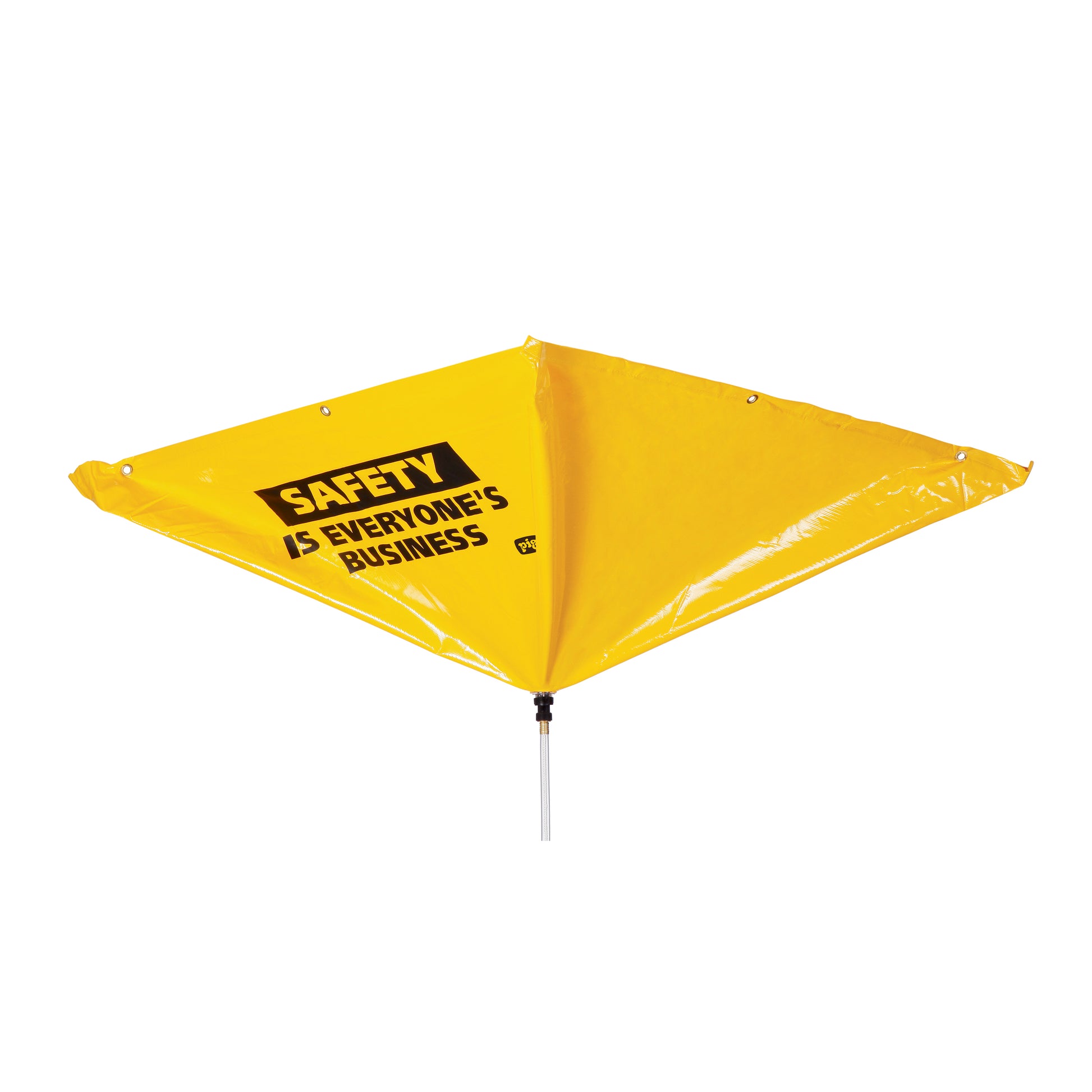

The inclusion of a highly visible safety message, such as β€˜Safety Is Everyone’s Business’, serves two crucial functions. It visually reinforces the presence of the required containment measure and, more importantly, transforms the diverter into an active safety warning, clearly defining the hazard zone for all staff and visitors in compliance with site safety protocols.

2. Are additional items required to achieve a fully operational leak management system?

Yes, for complete functionality, a drainage hose is essential to channel the collected water away from the area to a suitable reservoir or drain. The diverter provides a standard 0.75-inch outlet for connection, and we stock a range of compatible drainage hoses and collection containers which must be purchased separately.

3. What level of water flow can the diverter efficiently handle?

The diverter is designed for high-efficiency operation, providing a substantial, tested flow rate of 12.6 litres per minute when correctly paired with a half-inch internal diameter hose. This high capacity guarantees rapid water removal, which is paramount for mitigating potential pooling and subsequent floor damage.

4. What features contribute to the unit’s durability for long-term deployment?

The longevity of the unit stems from its robust material specification: a 13-ounce, nonpermeable PVC/Polyester composite with a high-strength vinyl coating. This construction ensures the diverter is highly resilient against common environmental stressors such as abrasion, UV damage from skylights, and the onset of mildew.

5. How is the diverter securely mounted beneath the leak source?

The unit features eight heavy-duty grommets/D-rings situated around the perimeter, including on the pinched corners. To mount, personnel should simply attach appropriate, approved hanging straps (which we stock separately) to these rings and suspend the tarp so the leak is centred over the collection area.
